低頭姿勢矯正器

Posture Bloom

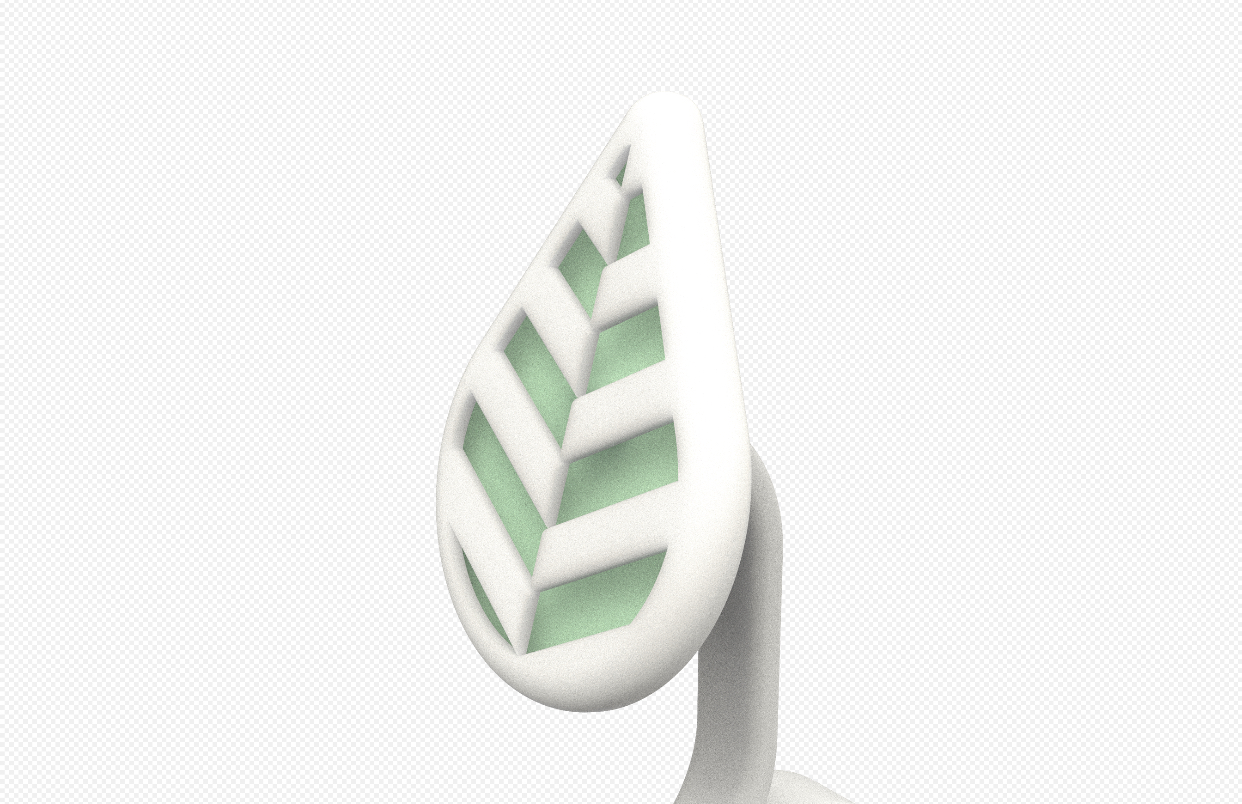

此設計利用「仿生設計」擷取植物葉子型態,以自然意象轉化為直覺式互動,結合情境式提醒機制,以「植物生長」隱喻姿勢提醒,適用於讀書、繪畫。

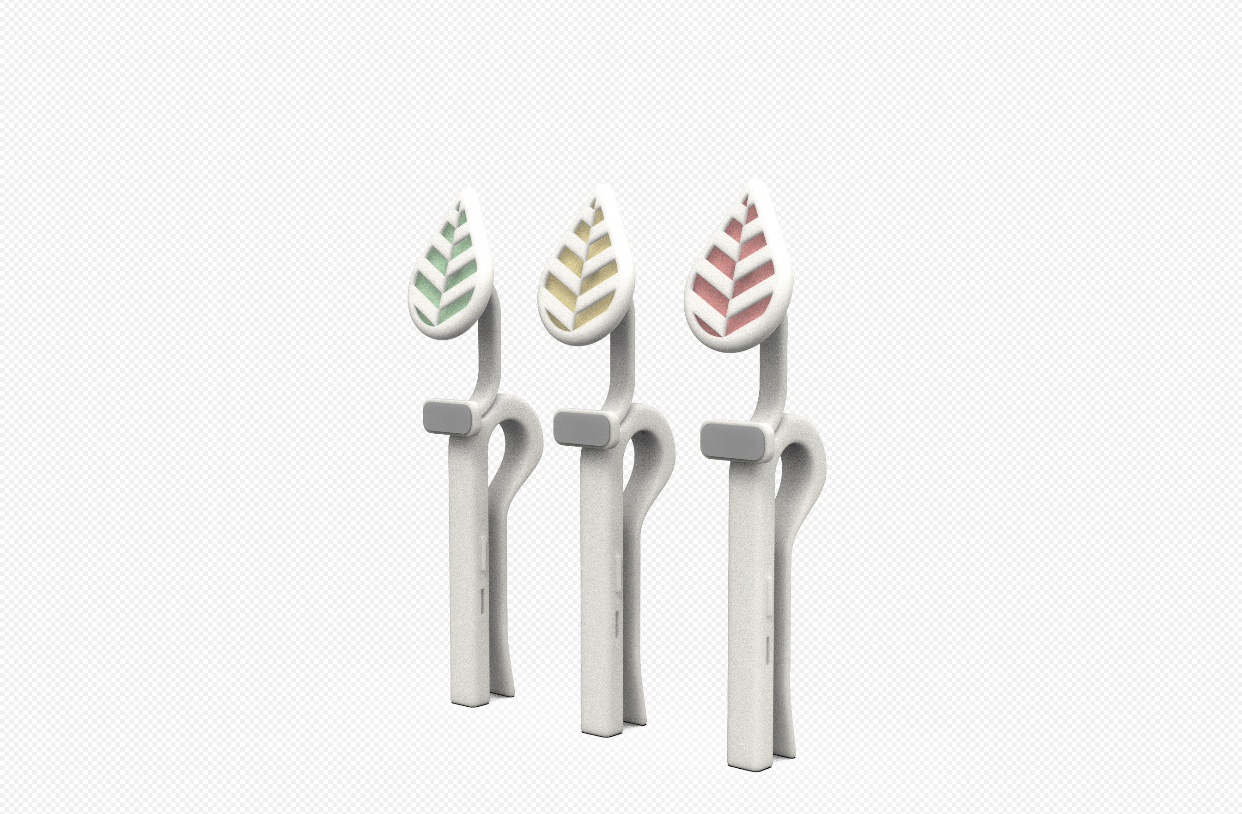

葉片燈光顏色隨姿勢變化:
採用人體工學低頭建議角度使用漸變燈光效果震動提醒
呼吸式閃爍提醒
綠色 0-30°(安全)
黃色 30-45°(警告)
紅色 >45°或黃燈持續
超過 15分鐘(危險)

產品內建藍芽、震動模組:
連接手機進行個人化設定
使用者可輸入身高並調整感測參數
使姿勢偵測符合不同使用情境
設定完成後 裝置可獨立運作不影響體驗
內建微型震動馬達
於長時間不良姿勢時提供溫和震動提示

使用方式為

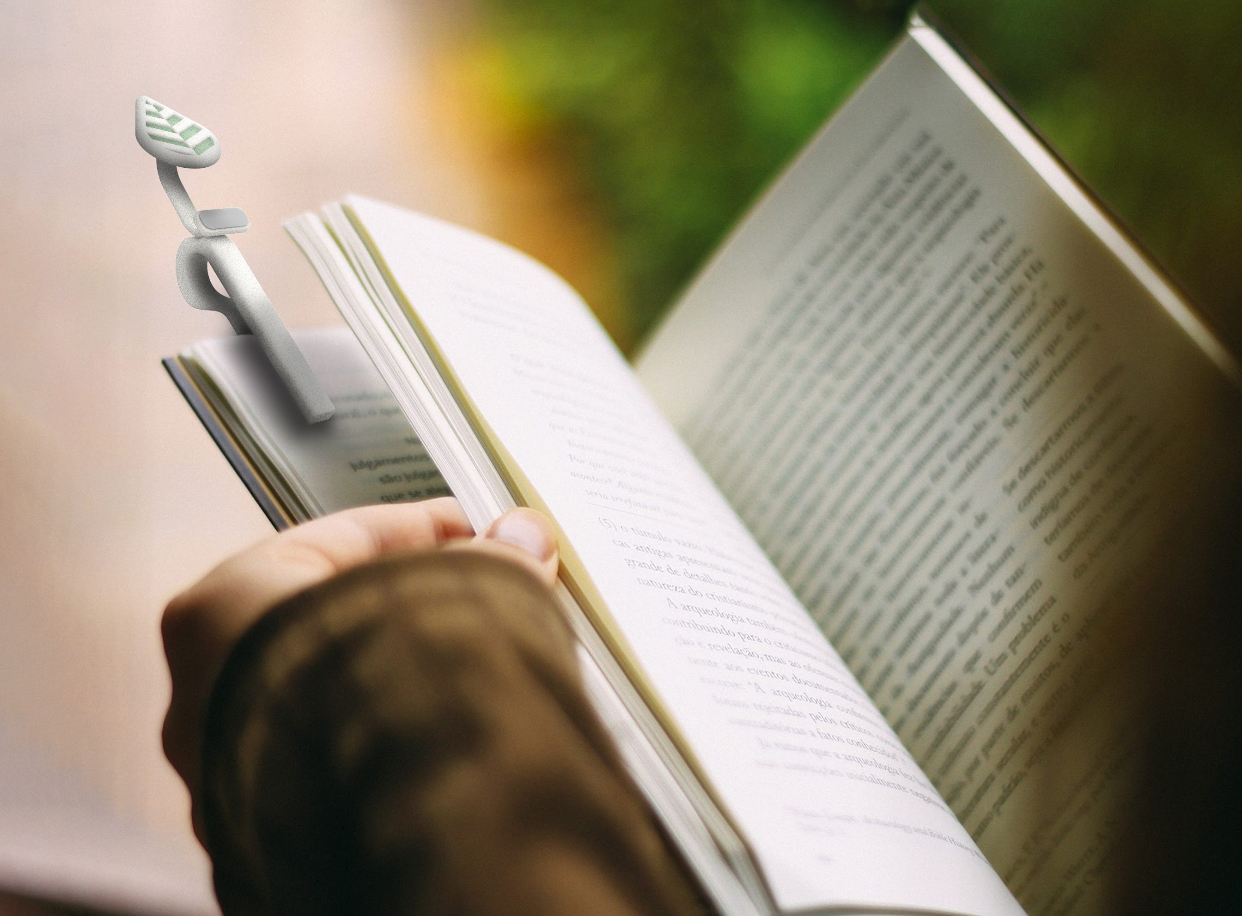

1.將裝置以夾子固定於書本可偵測頭部的位置使葉片朝上
2. 開啟電源後 紅外線感測器自動偵測使用者頭部位置與角度
3.使用過程中,葉片燈光依姿勢狀態變化顏色:
綠色為正常 黃色提醒紅色為不良姿勢 並搭配微弱閃爍及震動
4.調整姿勢後,燈光回復綠色,持續引導良好姿勢習慣

透過仿生造形、即時回饋與低干擾提醒整合,使產品在不影響專注的情況下建立長時間可持續的良好姿勢行為。

Posture Bloom

This product uses biomimicry inspired by plant leaves to create an intuitive posture reminder. It applies the idea of plant growth as a metaphor to guide users toward healthier posture while reading or drawing, allowing correction to happen naturally without interrupting concentration. The leaf-shaped light changes color based on posture angles recommended by ergonomics. Green (0–30°) indicates safe posture, yellow (30–45°) gives a warning, and red (>45° or yellow lasting over 15 minutes) signals danger. Gentle vibration and soft flashing provide reminders without distraction. The device includes Bluetooth for initial personalization, allowing users to input height and adjust sensing settings. After setup, it operates independently. A built-in infrared sensor detects head position, and users simply clip the device onto a book with the leaf facing upward for continuous posture guidance.

作品編號 #14 作品名稱 低頭姿勢矯正器 作品分類 立體造型暨產品設計類工業設計組 學校科系 龍華科技大學 文化創意與數位媒體設計係 設計師 吳O
龍華科技大學 文化創意與數位媒體設計系
(三年級)

吳O錡
龍華科技大學 文化創意與數位媒體設計系
(三年級)
指導老師 林O志
